Squares

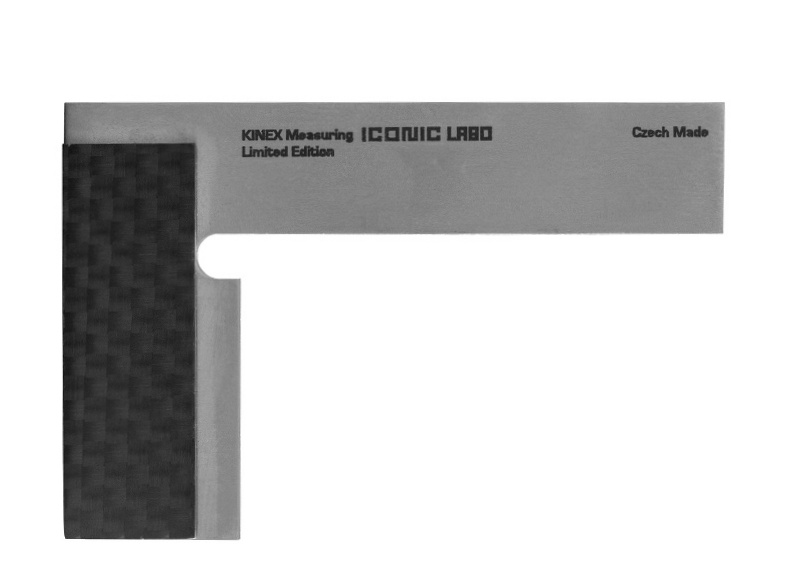

Ultralight precise square ICONIC Labo (carbon/titan)

4026-28-006 60x40mm 12x1,5mm II

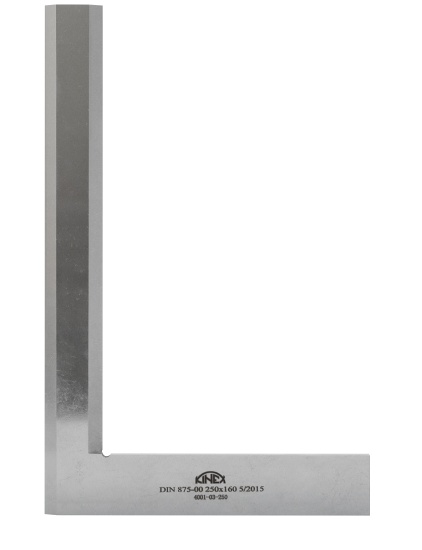

KNIFE EDGE SQUARE

4001-03-025 25x20 mm 4,7/4,7 mm 00
4001-03-040 40x28 mm 4,7/4,7 mm 00
4001-03-063 63x40 mm 4,7/4,7 mm 00
4001-03-075 75x50 mm 4,7/4,7 mm 00
4001-03-100 100x70 mm 18,7/5,6 mm 00
4001-03-150 150x100 mm 6,7/6,7 mm 00
4001-03-200 200x130 mm 32,6/7,8 mm 00
4001-03-250 250x160 mm 8,6/8,6 mm 00

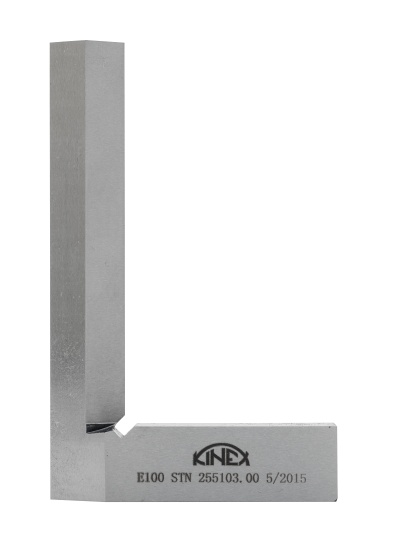

KNIFE EDGE SQUARE TYPE E

4001 63x35 mm 6,3/10,3 mm 00
4002 100x63 mm 14,5/10,5 mm 00
4003 160x100 mm 20,5/18/12,4 mm 00
4004 200x130 mm 20/20 mm 00
4005 250x160 mm 20/20 mm 00

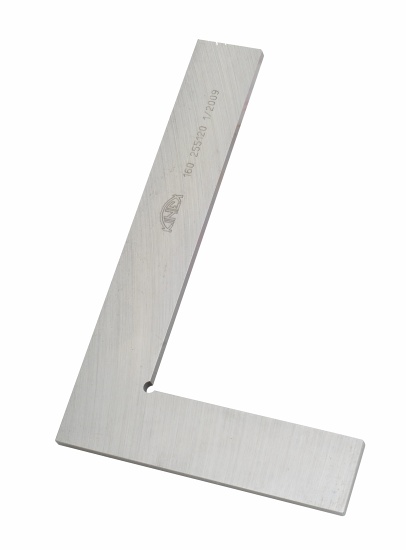

WORKSHOP FLAT SQUARE

4010 100x63 mm 17x4 mm PN 255120
4011 160x100 mm 26x5 mm PN 255120
4012 250x160 mm 26x5 mm PN 255120
4013 400x250 mm 32x6 mm PN 255120
4014 630x400 mm 40x8 mm PN 255120
4015 750x375 mm 40x8 mm PN 255120
4016 1000x500 mm 40x8 mm PN 255120

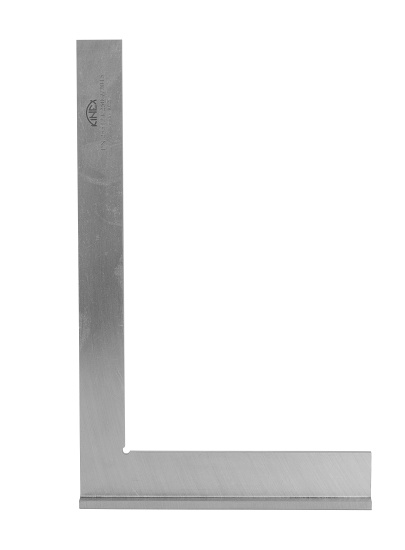

WORKSHOP FLAT SQUARE

4020 100x63 mm 17x4 mm PN 25 5124
4021 160x100 mm 26x5 mm PN 25 5124
4022 250x160 mm 26x5 mm PN 25 5124
4023 400x250 mm 32x6 mm PN 25 5124
4024 630x400 mm 40x8 mm PN 25 5124
4025 750x375 mm 40x8 mm PN 25 5124
4025-1 1000x500 mm 40x8 mm PN 25 5124

PRECISION SQUARE WITH BASE - HIGH SURFACE QUALITY

4026-02-006 60x40 mm 16x3 / 16x9 mm 0
4026-02-007 75x50 mm 16x3 / 16x9 mm 0
4026-02-010 100x70 mm 16x3 / 18x9 mm 0
4026-02-015 150x100 mm 20x3 / 23x10 mm 0
4026-02-020 200x130 mm 22x3 / 25x10 mm 0
4026-02-025 250x165 mm 23x3 / 26x12 mm 0
4026-02-030 300x200 mm 24x3 / 27x12 mm 0
4026-02-040 400x265 mm 26x4 / 30x16 mm 0
4026-02-050 500x330 mm 31x4 / 32x16 mm 0
4026-02-060 600x400 mm 31x4 / 32x16 mm 0
4026-12-006 60x40 mm 16x3 / 16x9 mm 1
4026-12-007 75x50 mm 16x3 / 16x9 mm 1
4026-12-010 100x70 mm 16x3 / 18x9 mm 1
4026-12-015 150x100 mm 20x3 / 23x10 mm 1
4026-12-010 200x130 mm 22x3 / 25x10 mm 1
4026-12-025 250x165 mm 23x3 / 26x12 mm 1
4026-12-030 300x200 mm 24x3 / 27x12 mm 1
4026-12-040 400x265 mm 26x4 / 30x16 mm 1
4026-12-050 500x330 mm 31x4 / 32x16 mm 1
4026-12-060 600x400 mm 31x4 / 32x16 mm 1
4026-02-250 SADA 100, 150, 200, 250 1

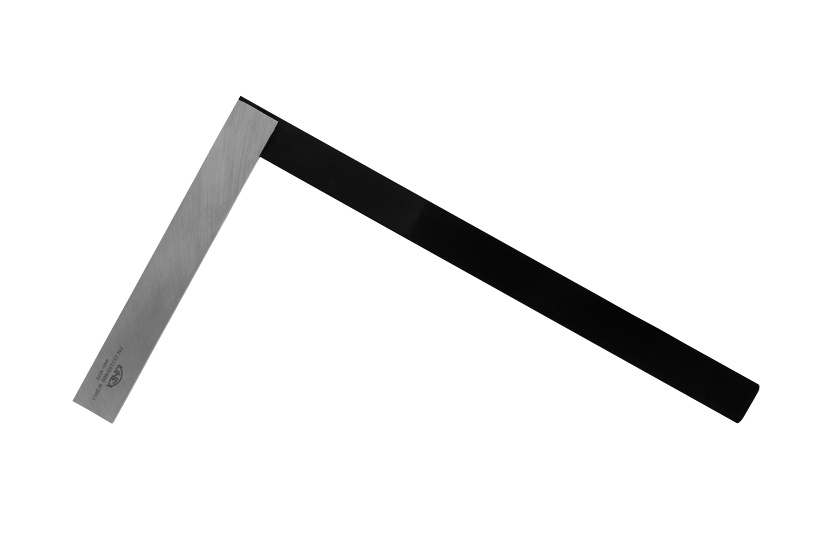

CARPENTER SQUARE

4028 400x230 mm 30x1/ 32x5 mm
4029 750x375 mm 30x1/ 32x5 mm
4030 1000x375 mm 30x1/ 32x5 mm

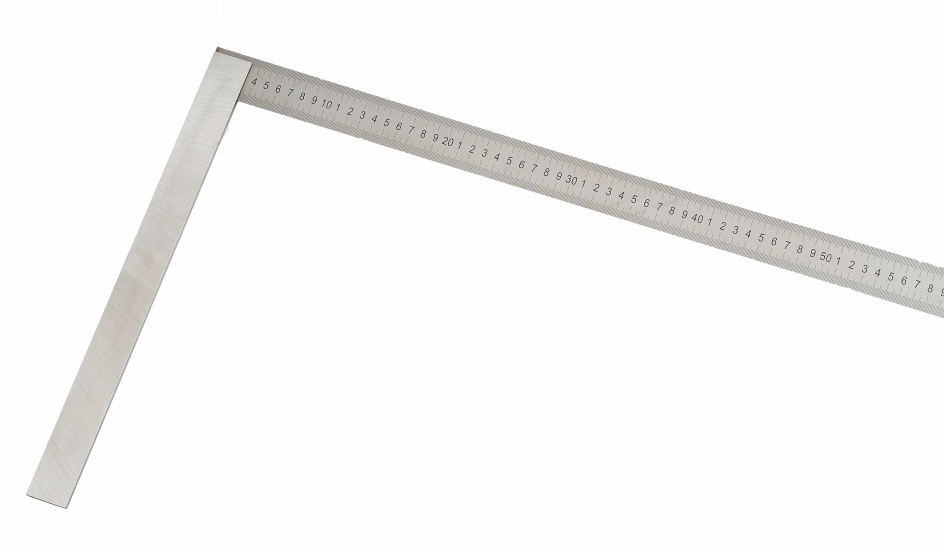

CARPENTER SQUARE WITH MM GRADUATION

4028-1 500x230 mm 40x2 / 32x6 mm
4029-1 750x375 mm 40x2 / 32x6 mm
4030-1 1000x375 mm 40x2 / 32x6 mm

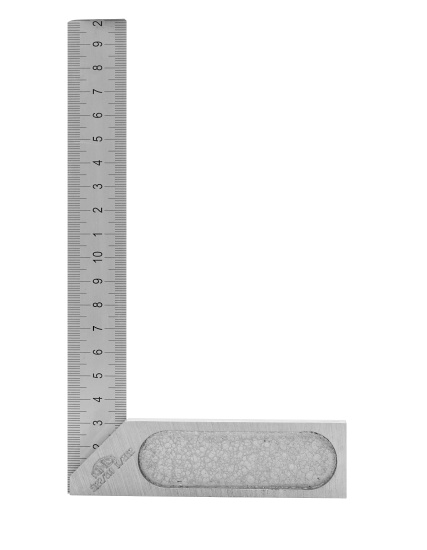

PRECISION FLEXIBLE SQUARE WITH MM GRADUATION

4031 200x120 mm 1,4/5 mm
4032 250x150 mm 1,4/5 mm

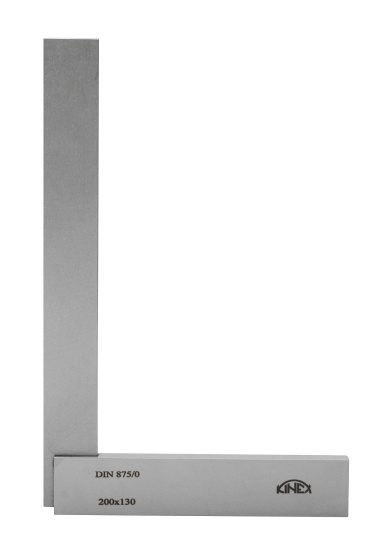

PRECISION FLAT SQUARE

4033-02-007 75x50 mm 17x6 mm 0
4033-02-010 100x70 mm 21x6 mm 0
4033-02-015 150x100 mm 26x8 mm 0
4033-02-020 200x130 mm 26x8 mm 0
4033-02-025 250x165 mm 31x8 mm 0
4033-02-030 300x200 mm 32x8 mm 0
4033-02-040 400x265 mm 40x8 mm 0
4033-02-050 500x330 mm 50x10 (12) mm 0
4033-02-060 600x400 mm 50x10 (12) mm 0
4033-02-075 750x500 mm 50x10 (12) mm 0
4033-02-100 1000x660 mm 50x10 (12) mm 0

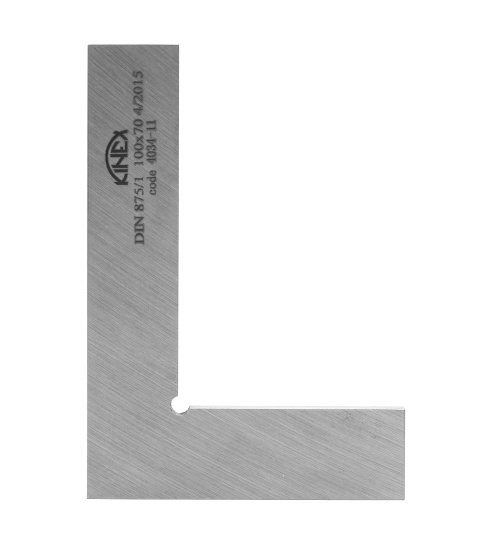

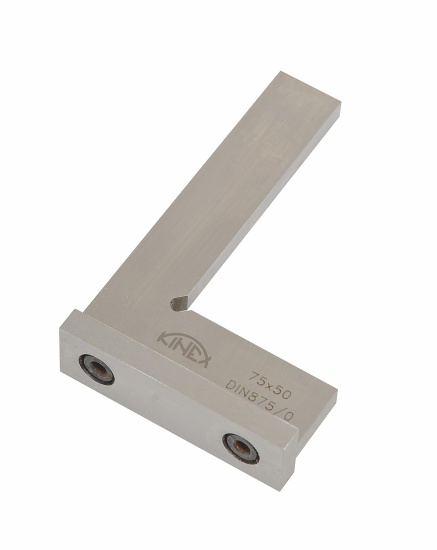

PRECISION SQUARE WITH BASE

4034-02-007 75x50 mm 17x6 mm 0
4034-02-010 100x70 mm 21x6 mm 0
4034-02-015 150x100 mm 26x8 mm 0
4034-02-020 200x130 mm 26x8 mm 0
4034-02-025 250x165 mm 31x8 mm 0
4034-02-030 300x200 mm 32x8 mm 0
4034-02-040 400x265 mm 40x8 mm 0
4034-02-050 500x330 mm 50x10 (12) mm 0
4034-02-060 600x400 mm 50x10 (12) mm 0
4034-02-075 750x500 mm 50x10 (12) mm 0
4034-02-100 1000x660 mm 50x10 (12) mm 0

PRECISION FLAT SQUARE

4033-12-007 75x50 mm 17x6 mm 1
4033-12-010 100x70 mm 21x6 mm 1
4033-12-015 150x100 mm 26x8 mm 1
4033-12-020 200x130 mm 26x8 mm 1
4033-12-025 250x165 mm 31x8 mm 1
4033-12-030 300x200 mm 32x8 mm 1
4033-12-040 400x265 mm 40x8 mm 1
4033-12-050 500x330 mm 50x10 (12) mm 1
4033-12-060 600x400 mm 50x10 (12) mm 1
4033-12-075 750x500 mm 50x10 (12) mm 1
4033-12-100 1000x660 mm 50x10 (12) mm 1
4033-12-150 1500x750 mm 60x12 mm 1
4033-12-200 2000x1000 mm 60x12 mm 1

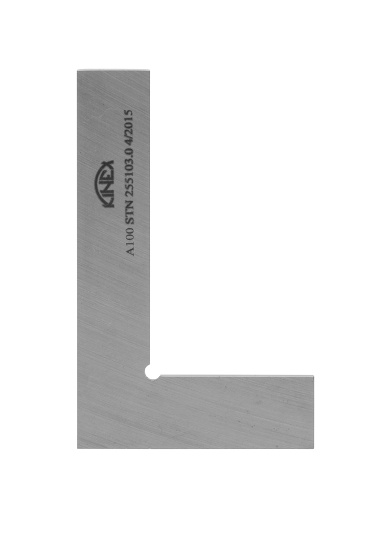

PRECISION SQUARE WITH BASE - HIGH SURFACE QUALITY

4034 63x40 mm 17x6 mm 1
4035 100x63 mm 21x6 mm 1
4036 160x100 mm 26x8 mm 1
4037 250x160 mm 31x8 mm 1
4038 400x250 mm 40x8 mm 1
4039 630x400 mm 50x12 mm 1
4045 63x40 mm 17x6 mm 1
4046 100x63 mm 21x6 mm 1
4047 160x100 mm 26x8 mm 1
4048 250x160 mm 31x8 mm 1
4049 400x250 mm 40x8 mm 1

PRECISION SQUARE WITH BASE

4034-12-007 75x50 mm 17x6 mm 1
4034-12-010 100x70 mm 21x6 mm 1
4034-12-015 150x100 mm 26x8 mm 1
4034-12-020 200x130 mm 26x8 mm 1
4034-12-025 250x165 mm 31x8 mm 1
4034-12-030 300x200 mm 32x8 mm 1
4034-12-040 400x265 mm 40x8 mm 1
4034-12-050 500x330 mm 50x10 (12) mm 1
4034-12-060 600x400 mm 50x10 (12) mm 1
4034-12-075 750x500 mm 50x10 (12) mm 1
4034-12-100 1000x660 mm 50x10 (12) mm 1
